Software Architecture Design Pattern

 The architecture of a software system is the shape given to that system by those who build it. The form of that shape is in the division of that system into components, the arrangement of those components, and the ways in which those components communicate with each other.

The purpose of that shape is to facilitate the development, deployment, operation, and maintenance of the software system contained within it.

Good architecture makes the system easy to understand, easy to develop, easy to maintain, and easy to deploy. The ultimate goal is to minimize the lifetime cost of the system and to maximize programmer productivity.

A good architecture must support:

• The use cases and operation of the system:  architecture must support required throughput and response time for each use case that demands it.
• The maintenance of the system: makes the system easy to change.
• The development of the system: partitioning the system into well-isolated, independently developable components that can be allocated to teams that can work independently of each other.
• The deployment of the system: A good architecture does not rely on dozens of little configuration scripts and property file tweaks. It does not require manual creation of directories or files that must be arranged just so. A good architecture helps the system to be immediately deployable after build.

Model-view-controller pattern

The model-view-controller (MVC) pattern divides an application into three components: A model, a view, and a controller.

The model, which is the central component of the pattern, contains the application data and core functionality. It is the dynamic data structure of the software application, and it controls the data and logic of the application. However, it does not contain the logic that describes how the data is presented to a user.

The view displays application data and interacts with the user. It can access data in the model but cannot understand the data, nor does it understand how the data can be manipulated.

The controller handles the input from the user and mediates between the model and the view. It listens to external inputs from the view or from a user and creates appropriate outputs. The controller interacts with the model by calling a method on it to generate appropriate responses.

Microservices pattern

Microservice is the process of implementing Service-oriented Architecture (SOA) by dividing the entire application as a collection of interconnected services, where each service will serve only one business need.
The microservices pattern involves creating multiple applications—or microservices—that can work interdependently, each service is self-contained and implements a single business capability. Although each microservice can be developed and deployed independently, its functionality is interwoven with other microservices.

Microservice Rules :

• Independent: Each microservice should be independently deployable.
• Coupling: All microservices should be loosely coupled with one another such that changes in one will not affect the other.
• Business Goal: Each service unit of the entire application should be the smallest and capable of delivering one specific business goal.

The principles used to design Microservices are as follows:

1. Independent & Autonomous Services
2. Scalability
3. Decentralization
4. Resilient Services
5. Real-Time Load Balancing
6. Availability
7. Continuous delivery through DevOps Integration
8. Seamless API Integration and Continuous Monitoring
9. Isolation from Failures
10. Auto -Provisioning

Microservices Design Patterns are grouped into five major categories.

• Decomposition Design Patterns: provides insight on how to decomposed application in smaller microservices.
• Integration Design Patterns: handles the application behavior, how to get result of multiple services result in single call etc.
• Database Design Patterns: how to define database, should have a separate database per service or use a shared database.
• Observability Design Patterns: considers tracking of logging, performance metrices and so.
• Cross Cutting Concern Design Patterns: deals with service discovery, external configurations, deployment scenarios etc.

Decomposition Design Patterns:

1. Business Capability: split by business activity targeted to generate value. For example, in an e-commerce platform, we can split system by Sales and Customer service. Business capabilities may overlap, resulting in redundant services, like develop payment on Sales and on Customer Service!
2. Domain-Driven Design(DDD): DDD refers to business as a domain, For example, in an e-commerce platform, we can split system by Ordering, Shipping, Payment.

Design Patterns of Microservices

1. Aggregator
2. API Gateway
3. Chained or Chain of Responsibility
4. Asynchronous Messaging
5. Database or Shared Data
6. Event Sourcing
7. Branch
8. Command Query Responsibility Segregator
9. Circuit Breaker
10. Decomposition

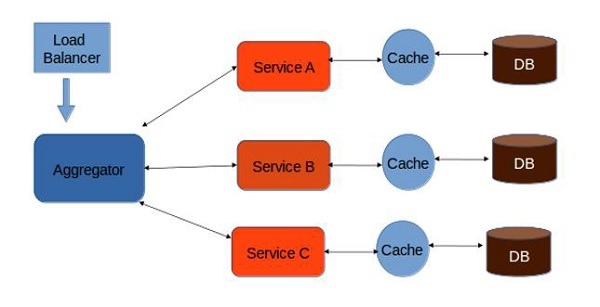

1) Aggregator Pattern

a simple web module will call different services as per requirements, the "Aggregator" is responsible for calling different services one by one. If we need to apply any business logic over the results of the service A, B and C, then we can implement the business logic in the aggregator itself.

1.1) Proxy Pattern (sort of aggregator)

Build one level of extra security by providing a dump proxy layer. This layer acts similar to the interface.

1.2) Chained Pattern

 Produces a single output which is a combination of multiple chained outputs, All the services will be chained up in a such a manner that the output of one service will be the input of the next service.
All these services use synchronous method. Also, until the request passes through all the services and the respective responses are generated, the client doesn’t get any output. So, it is always recommended to not to make a long chain, as the client will wait until the chain is completed

1.3) Branch Microservice Pattern

Allows the developer to configure service calls dynamically. All service calls will happen in a concurrent manner, which means service A can call Service B and C simultaneously, client can directly communicate with the service.

1.4) Shared Resource Pattern

the client or the load balancer will directly communicate with each service whenever necessary. This is the most effective designing pattern followed widely in most organizations.

2) API Gateway Design Pattern

• Acts as the entry point for all the microservices and can convert the protocol request from one type to other.
• Can also offload the authentication/authorization responsibility of the microservice.
• Can also be considered as the proxy service to route a request to the concerned microservice.
• Can send the request to multiple services and similarly aggregate the results back to the composite or the consumer service.

3) Asynchronous Message-Based Communication Design Pattern

If you have multiple microservices are required to interact each other and if you want to interact them without any dependency or make loosely coupled, than we should use Asynchronous message-based communication in Microservices Architecture. Because Asynchronous message-based communication is providing works with events. So events can place the communication between microservices, which called "event-driven communication".
Example use case can be like a price change in a product microservice. Price Changed event can subscribed from Shopping Cart microservice in order to update basket price asynchronously.

So if we summarize the async communication, The client microservice sending a message or event to the message broker systems and no need to wait reply. Because it aware of this is message-based communication, and it won’t be respond immediately. A message or event can includes some data. And these messages are sent through asynchronous protocols like AMQP over the message broker systems like Kafka and Rabbitmq.

There are two kinds of asynchronous messaging communication:

• Single receiver message-based communication that we can say One-to-One model.
• Multiple receivers message-based communication that we also said Publish/Subscribe model.

4) Database or Shared Data Pattern

use shared database to solve the follows problems:

• Duplication of data and inconsistency
• Different services have different kinds of storage requirements
• Few business transactions can query the data, with multiple services
• De-normalization of data

Advantages of sharing the database:

• the simplest way of integration
• no middleman involved
• no latency overhead
• quick development time

5) Event Sourcing Design Pattern

 Instead of storing just the current state of the data, use an append-only store to record the full series of actions taken on that data.
These events are stored as a sequence of events to help the developers track which change was made when. So, with the help of this, you can always adjust the application state to cope up with the past changes. You can also query these events, for any data change and simultaneously publish these events from the event store. Once the events are published, you can see the changes of the application state on the presentation layer.

We can use MixPanel for this!

============================================

𝗟𝗼𝗮𝗱 𝗕𝗮𝗹𝗮𝗻𝗰𝗲𝗿 𝘃𝘀. 𝗥𝗲𝘃𝗲𝗿𝘀𝗲 𝗣𝗿𝗼𝘅𝘆 𝘃𝘀. 𝗔𝗣𝗜 𝗚𝗮𝘁𝗲𝘄𝗮𝘆

What are the differences between a load balancer, a reverse proxy, and an API gateway?

All three are used to optimize and manage web traffic. However, they vary in their function and use cases:

A 𝗹𝗼𝗮𝗱 𝗯𝗮𝗹𝗮𝗻𝗰𝗲𝗿 is a device that distributes incoming network traffic across multiple servers. The goal is to ensure that no single server is overwhelmed with traffic, which can lead to slow response times or even downtime. Load balancers are ideal for high-traffic websites or applications that need to handle a large volume of requests.

A 𝗿𝗲𝘃𝗲𝗿𝘀𝗲 𝗽𝗿𝗼𝘅𝘆, on the other hand, is a server that sits between the client and the webserver. The reverse proxy intercepts requests from clients and forwards them to the appropriate server. The reverse proxy can also cache frequently requested content, which can help improve performance and reduce server load. Reverse proxies are ideal for websites or applications that need to handle a large number of concurrent connections.

An 𝗔𝗣𝗜 𝗴𝗮𝘁𝗲𝘄𝗮𝘆 is a server that acts as an intermediary between clients and backend servers. The API gateway is responsible for managing API requests, enforcing security policies, and handling authentication and authorization. API gateways are ideal for microservices architectures, where multiple services need to be accessed through a single API.

====================================

𝐖𝐡𝐚𝐭 𝐚𝐫𝐞 𝐀𝐫𝐜𝐡𝐢𝐭𝐞𝐜𝐭𝐮𝐫𝐚𝐥 𝐏𝐚𝐭𝐭𝐞𝐫𝐧𝐬?
Architectural patterns are standard strategies that define structural organization for software systems, providing a template for the architecture's design and module interactions.

Here are famous architectural patterns:

➡ 𝐄𝐯𝐞𝐧𝐭-𝐃𝐫𝐢𝐯𝐞𝐧: An event-driven architecture is a framework that orchestrates behavior around the production, detection, and consumption of events. Example use case: A real-time analytics system where events are generated by user activities and processed immediately.

➡ 𝐋𝐚𝐲𝐞𝐫𝐞𝐝: A layered architecture is a hierarchical pattern for structuring a system into groups of related functionalities, each layer having a specific role. Example use case: A web application with a presentation layer, business logic layer, and data access layer.

➡ 𝐌𝐨𝐧𝐨𝐥𝐢𝐭𝐡: A monolithic architecture is a traditional unified model for the design of a software program where all components are interwoven and interdependent. Example use case: A small-scale e-commerce website where the user interface, server-side application, and database are all on a single platform.

➡ 𝐌𝐢𝐜𝐫𝐨𝐬𝐞𝐫𝐯𝐢𝐜𝐞: Microservices architecture is an approach where a single application is composed of many loosely coupled and independently deployable smaller services. Example use case: A large-scale cloud-based application like Netflix, where each service runs a unique process and communicates through a well-defined, lightweight mechanism to serve a business goal.

➡ 𝐌𝐕𝐂 (𝐌𝐨𝐝𝐞𝐥-𝐕𝐢𝐞𝐰-𝐂𝐨𝐧𝐭𝐫𝐨𝐥𝐥𝐞𝐫): MVC is a design pattern that separates an application into three interconnected components: the model, the view, and the controller. Example use case: A desktop GUI application where user interface data (view), data manipulation (model), and input control (controller) are separated to simplify maintenance and scalability.

➡ 𝐌𝐚𝐬𝐭𝐞𝐫-𝐒𝐥𝐚𝐯𝐞: The master-slave pattern is a model where one master component controls one or more subordinate instances, called slaves. Example use case: A database replication system where the master database manages writes and the slave databases handle read operations to distribute the load.

Enterprise Architecture

What architecture is about: providing options, analyzing options, and choosing the best option to solve the problem.

Architecture starts with the customer requirements, translate these into specifications for a product or a service.

Enterprise Architecture (EA) : It’s the sum of strategy, business, and technology.

EA focus on the business goals, supported by technology.

If customers were demanding new products or services.

Who were these customers?

Why did they want new products?

Where were these customers located?

Where could new customers be found and how could a company increase market share?

Was a company ready to scale?

Were systems prepared to scale?

Types of Architecture Diagrams:

• Conceptual Architecture Diagram: Basic technical diagram, highlights the relationships between key components, used to show direction of the solution and isolate domain areas.
• Logical Architecture Diagram: After the Conceptual diagram(s). Logical diagrams describe how a solution works in terms of function and logical information. It illustrates connectivity between applications and therefore the flow or sequence between components. The value is that this helps instruct the software development teams on how to implement a solution.
• Physical Infrastructure Architecture Diagram: This depicts physical elements that enable the infrastructure team to do their work including server models/VMs/Containers, databases/storage, network, zones, systems and sub-systems, and connectivity. This is very detail oriented.
• Sequence Diagram: This illustrates the steps required to complete a process; vertically list the components and use horizontal lines to show the interactions as steps between the components.
• Systems Context Diagram: for business user’s, shows the systems involved and excludes systems that are not.

Free website to design application Architect

• https://app.diagrams.net/
• https://sequencediagram.org/
• https://editor.swagger.io/

Enterprise Architecture Components:

Organizational Architecture: It addresses where people sit in the organization and what their tasks are in alignment with the strategy of the organization.

Business architecture: defines the purpose of the enterprise, the different functions, and critical processes needs to operate the business.

Application architecture: lays out the patterns to build and operate the applications. defines the integration between applications.
The application architecture should follow the business architecture.
For example, business architecture has a business requirement to create a dashboard for market and customers to show market insights, and customer satisfaction surveys (CSAT).
this will reflect to application architecture, to create a relation between BI and customer relationship systems.

Data or information architecture: defines the data models [input, output], including how data is stored and securely transported between systems.

Technological architecture (IT): This architecture defines the infrastructure that hosts the applications and the data. include all technical elements in details such as network , compute, storage, and interfaces.

Enterprise Architecture Positions

System architecture (Infrastructure Architecture):  create a low level detail describe how systems are built and configured include software and hardware components, describing exactly what type of hardware is used and what software, operating systems and middleware.

Just mentioning that a system runs Linux is not sufficient in this architecture;

it must mention the used Linux version and how the operating system is configured, what security policies have been applied.

This is equal to the Technological Architecture that we defined in EA Components.

Technical architecture (Software architecture): This architecture contains the details on the technical landscape and shows how systems are related to each other. It shows the data flows, applications, and services used to fulfill solution requirements. As an example, the technical architecture shows how an application is connected to a specific database or how the application is communicating to the outside world, using Internet gateways or other connections. This is mapped to the data and application architecture component. The details of the configuration of the database server are part of the system architecture. The technical architecture will show what instances the database holds (think of databases with customer data, where every region of the enterprise has its own database instance); the system architecture will tell that the server runs SQL on top of a Windows operating system and in what versions.

Solution architecture: This architecture is about fulfilling specific business requirements and aims on creating value. It shows how the technical architecture and the systems are brought together to create a solution addressing a specific need of customers. So, we have a technical solution showing what databases the enterprise has and how they functionally look like, and we have a system architecture telling that the database is running Windows and SQL. But that’s not a solution. A solution answers the question how systems and technical architectures help solve a business issue or problem. In this case, the business requirement might have been to provide a solution to store customer data per region in a database. That resulted in a solution choosing for a specific setup of the database and how this setup can be technically fulfilled. System and technical architecture must be aligned with the business architecture.

Enterprise architecture: holds the business strategy, defines the governance on architecture on various levels, and drives the digital transformation of the entire enterprise. This architecture doesn’t just cover the one solution for regional databases holding customer information, but for every system in the enterprise landscape. The enterprise architecture forms the guardrails for any other architecture in the enterprise, including a clear definition of processes to work with architecture.

Quality Function Deployment steps(QFD) [Six Sigma management strategy] :

1- Product planning: Identify and prioritize customer requirements, using the Voice of the Customer (VOC).

2- Product design: Ideas and concepts are developed, leading to product specifications.

3- Process planning: Define how the product must be developed.

4- Process control: The actual production is planned, including testing and validation against the specifications as set in the VOC. In this stage the House of Quality (HOQ) is used for validation.

From Monolith to Modern and Micro

Monolith systems are designed as “one piece” and are very hard to change. New requirements that would lead to new features and changes create risks,limit the speed of changes.

by time, System architecture will start to deviate from the original architecture making it even harder to innovate and address changing business needs while keeping the quality, availability, and reliability of the systems intact. This makes it mandatory to review and redesign the architecture of these monolithic systems; otherwise, they will slow down change or even cause business changes to come to a full stop.
Imagine what happens if the business strategy needs to be changed?

In microservices, each functionality is captured by a separate service. Presenting data or content is a separate service that can now connect to various platforms that hold data. If one platform is not responding, the presentation service can connect to another platform and make sure that the service to the customer is still delivered.

A microservice architecture consists of loosely coupled elements, but it also means that building and operating teams will be loosely coupled.

Benefits of Microservices:

- Agility: Teams don’t develop an entire application, but only develop a service, team only needs to worry about that specific service, This decreases the development time dramatically.

- Resiliency: decreases the risks of a single point of failure.

- Scalability: Microservices are developed in such way that they can be deployed in multiple applications and systems. That makes them scalable.

- Business Impact: development cycles are shorter and systems suffer less from downtimes. Less downtime means lower costs, customers will be happier since services are less interrupted and products continuously improved.

But keep in mind, Amazon paper   at Mar 22, 2023 and this link also, concludes that

"Microservices and serverless components are tools that do work at high scale, but whether to use them over monolith has to be made on a case-by-case basis. Moving our service to a monolith reduced our infrastructure cost by over 90%. It also increased our scaling capabilities."

Models:

1) BAIT model: describe Business, Application, Information, and Technology

2) Zachman Framework: a methodology to describe complex things, it provide insights in how the enterprise operates.

3) TOGAF:

provide a step-by-step approach on how to do an architecture [ADM Cycle].

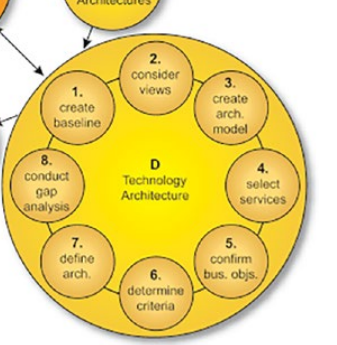

Architecture Development Method (ADM) cycle

TOGAF reasoning:

- What business problem are we solving?

- What interface (application) needed to get the information?

- What information needed to solve the business problem?

- What technology needed to solve the business problem in the most optimized way?

4) IT4IT Framework : focus to deliver value, develop and deliver products and services based on market and customer demand.

Main value streams:

- S2P or Strategy to Portfolio:  alignment business strategy and the IT portfolio that required for strategy.

- R2D or Requirement to Deploy: high-quality results for business while focusing on reusability, agility, and collaboration across IT.

- R2F or Request to Fulfill: optimizing delivery of services, experience of the user.

- D2C or Detect to Correct: maintain the value for the user. It uses IT service management (ITSM) processes such as incident management, problem management, configuration management, and change management.  D2C supports in service-level monitoring, detection, and remediation of issues so that the user is not impacted by issues.

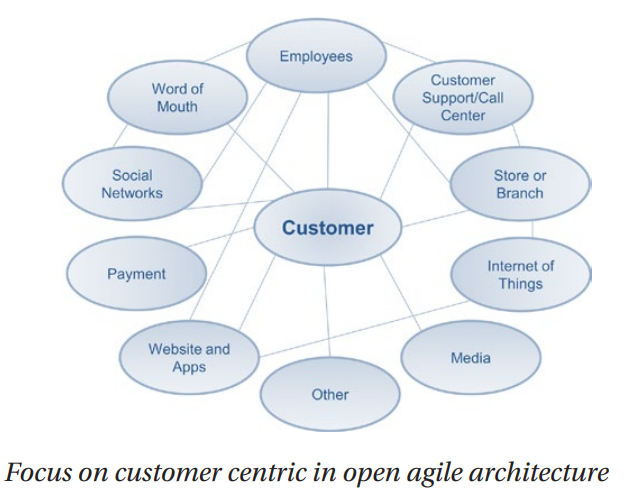

5) Open Agile Architecture (O-AA)

Requirements to become an agile enterprise:

- Get rid of silos and aim for interdisciplinary collaboration, focused on the best outcome for the customer.

- To become agile, teams must be empowered to take decisions for themselves. Therefore, teams must be skilled to spot opportunities and quickly identify and classify risks.

Change management is something different than feature management.

New features come from requirements. Architect should validate

1) Impact of requirements in terms of the overall business strategy.

2) Does feature adding value?

3) What is the impact of developing new features?

4) What resources are required, what are the costs, and what is the value driver?

Change control aspects:

• Scope

• Time

• Resources

• Risks

• Stakeholder views/ resistance

• Costs

• Quality

Build Web Portals

 Common Web Portal Architecture Diagram

On Premises vs Cloud Computing

How to use Azure APP Service?

Azure APP Service supports .net, java, go, python, node js, Ruby, and PHP

Azure Database Service

Azure storage account

Azure Storage Account types

- Blob Storage: Save all kind of file

- File Storage: the same as Blob Storage but support SMB protocol to allow attach it for Read/Write on a containers

- Table Storage: No SQL data store

- Queue Storage: Async Message

Storage Account Endpoints

https://<storageAccountName>.blob.core.windows.net

https://<storageAccountName>.file.core.windows.net

https://<storageAccountName>.table.core.windows.net

https://<storageAccountName>.queue.core.windows.net

Type of Blobs

Block Blob: store text and binary, max size 4.75TB

Page Blob: Random read and write operation, max size 8TB, support attach to azure VM

Append Blob: optimized for append, Only appended blocks, max size 195 GB

Blobs Access Tiers

Hot Storage Tier: when data is accessed frequently, storage cost: high, access cost: low

Cold Storage Tier: for infrequent access, storage cost: low, Access cost: high

Archive Storage Tier: for rare access, storage cost: lowest, access cost: highest

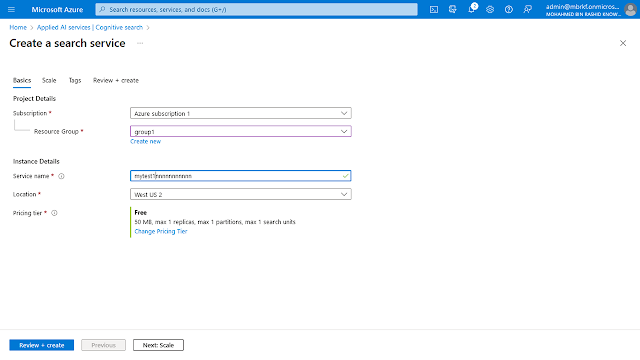

Azure Cognitive Search

Support FTS from data sources like SQL Server, Cosmos DB, Blob Storage, Table Storage….

Cognitive Search create searchable information out of unstructured contents by attaching AI to indexing pipeline.

Use case:

extract all articles that speak about UAE form all printed newspapers around the world.

We can provide you, scanned newspapers’ images.

The main problem, that you do not know Chinese, Japanese, Turkish…

Design Microservices Architecture with Patterns & Principles

monolithic ---> Layered - SOA ---> Microservices  ---> Event-Driven Architecture

use https://app.diagrams.net/ to create the system architect chart
